F660

TypeThermoformer
Max output10 – 12 cycles/min
Machine dimensions3275 (Max. 6000) x 1340 x 1940 mm
Forming filmFlexible and rigid
Power suply440V -50Hz -3PNE
Max output N10 – 12 cycles/min
Max step360 (Optional)
Max forming depth120mm
Pneumatic feeding6 bars
Loading zone300-1500mm
Max forming film width660mm
Max forming film reel ø400mm
Max sealing film reel ø250mm

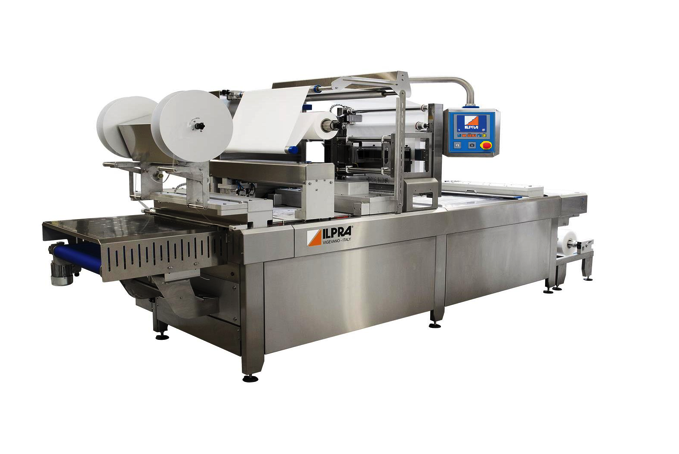

The ILPRA F660 model is a very compact in line thermoforming machine. Only 3 (Could be until 6) meter long, this machine features at best the principles of a new technology conceived to meet the different requirements of customers in industrial, food and medical sectors. Its features are the following:



Versatility: the machine can thermoform both flexible and rigid material. It is available in two versions: F660 N for sealing only and F660 VG for vacuum packaging and vacuum/gas packaging.



Friendly use: it is suitable for different productions thanks to the very easy size change. It is the ideal also for customer at their first packaging experience.



Standard configuration: it is possible to choose a wide combination of sizes available in stock, thus reducing the delivery term at competitive prices.



Hygiene: completely constructed of stainless steel and anodized aluminum with IP 65 protection class it can be easily washed and be placed in very humid and aggressive working environment.



Custom tailored: a wide range of options (Such as Printer, labeler, dosing systems, robots, etc.) makes the machine suitable for different working requirements.
